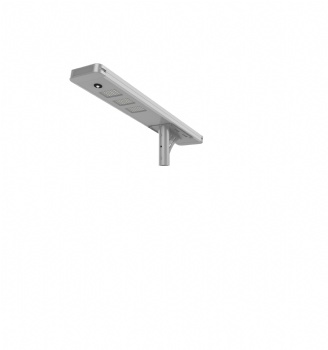

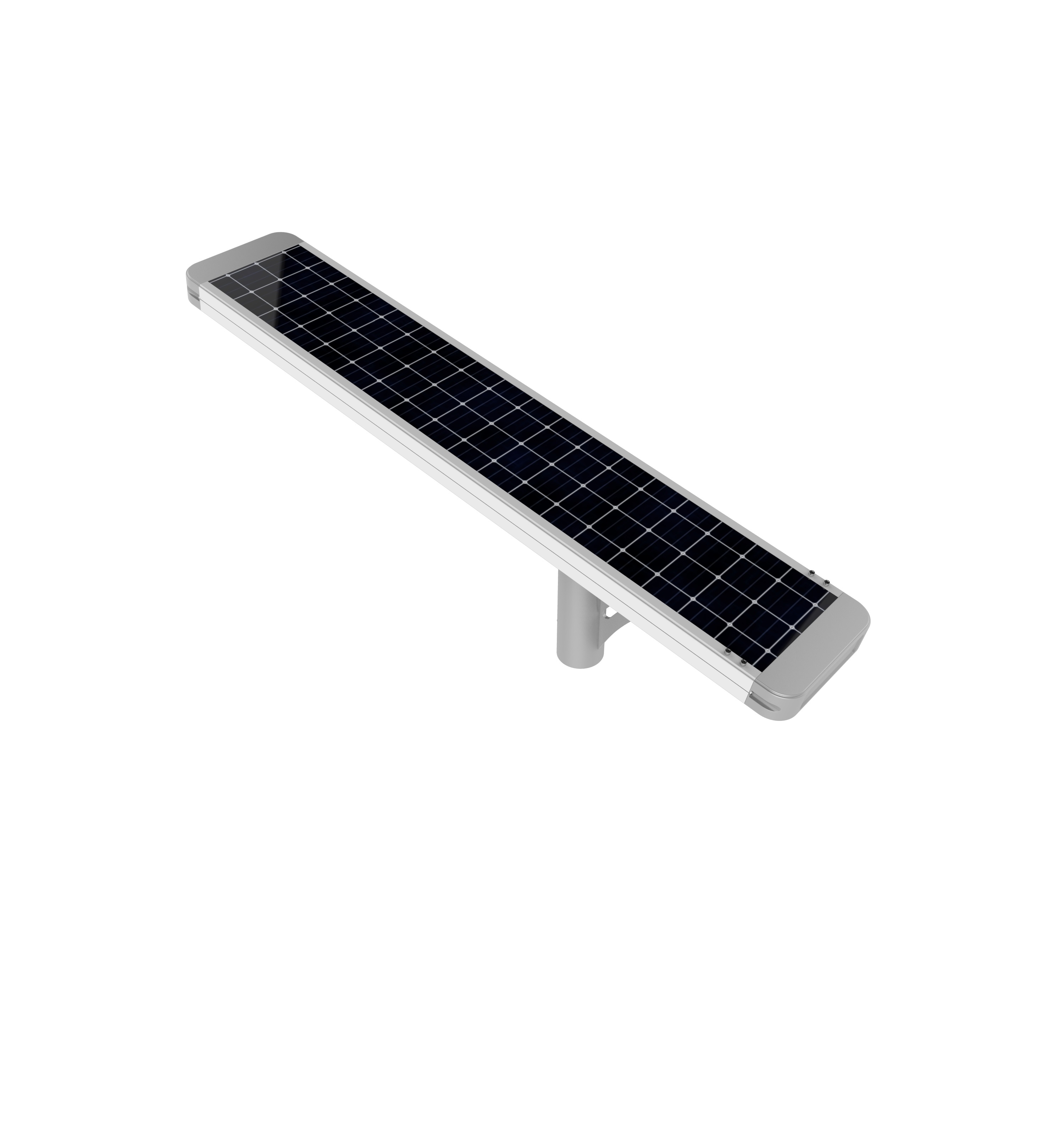

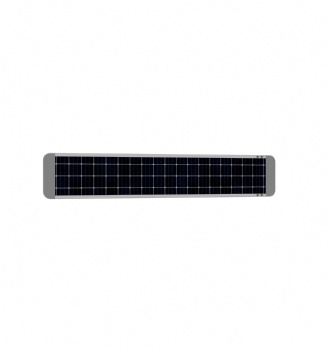

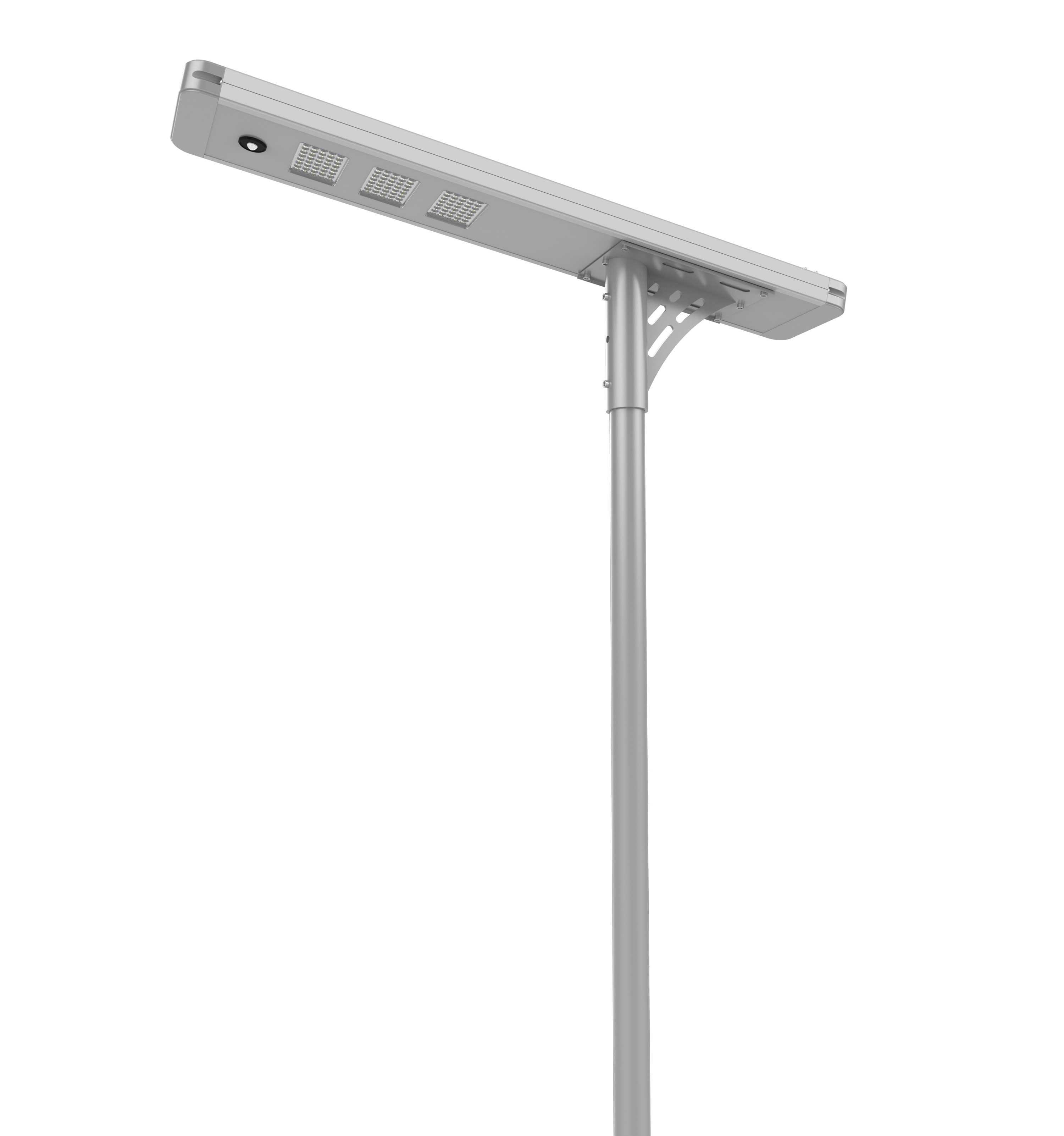

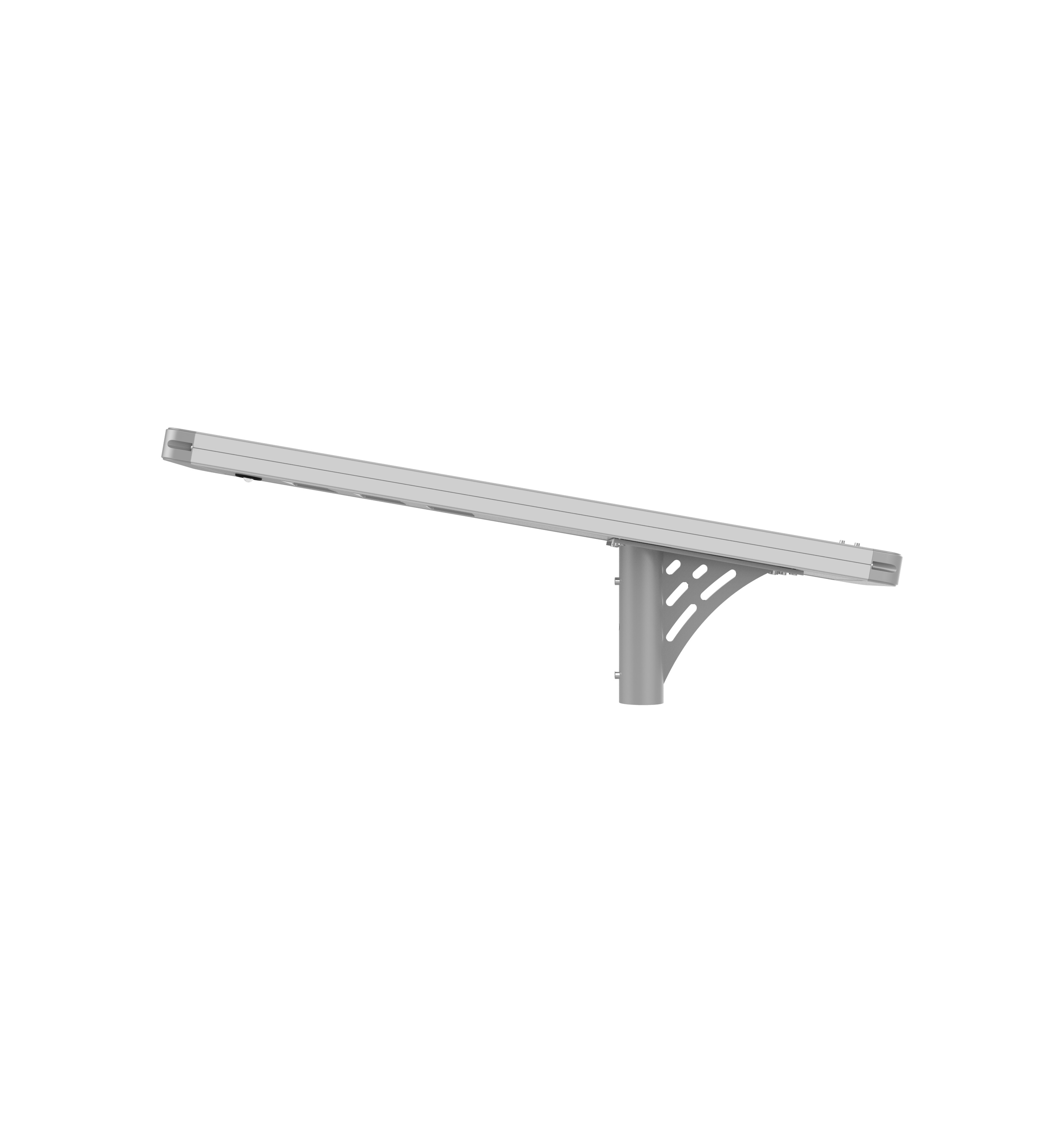

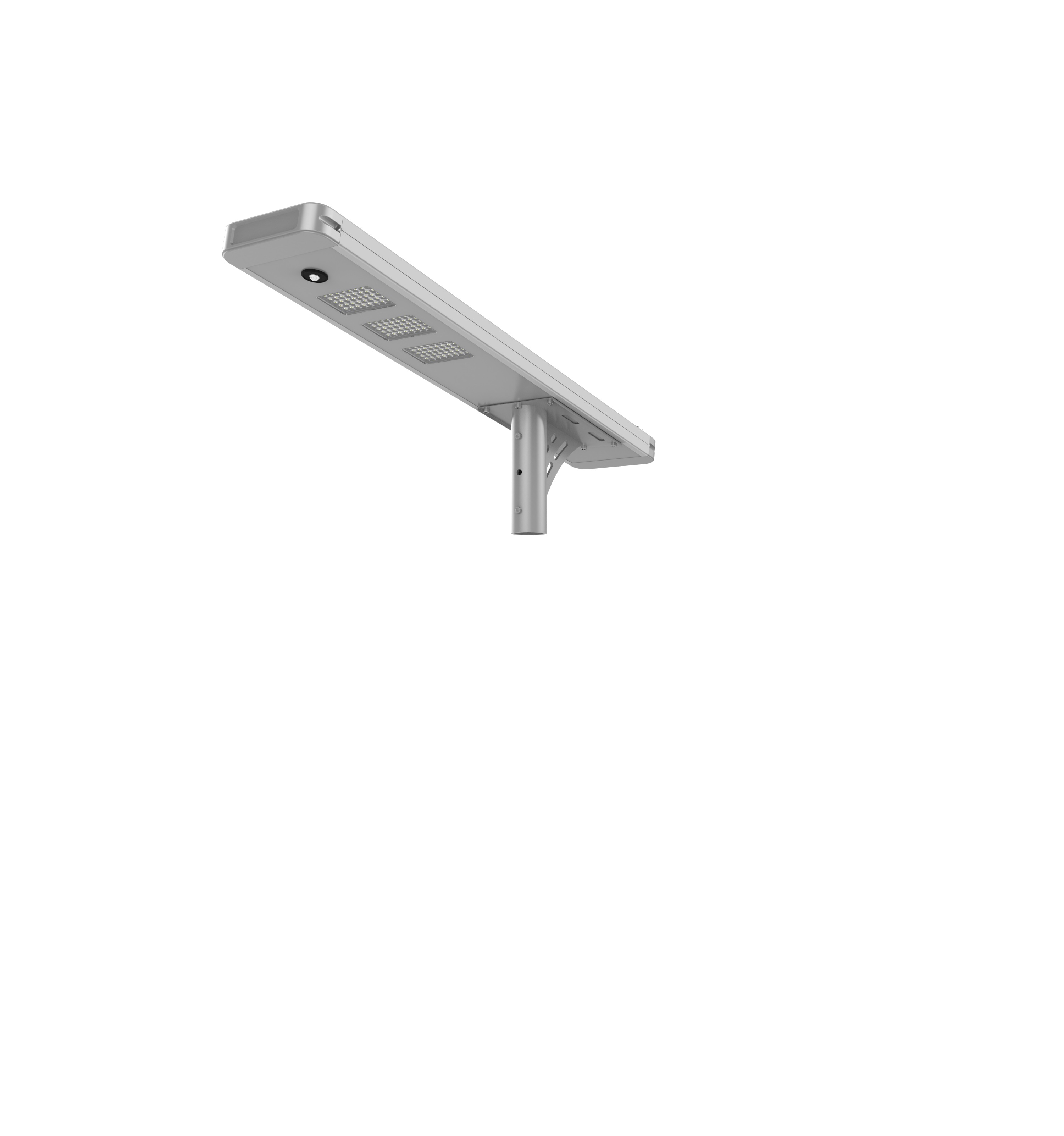

Model:CSQY2-60W
Solar Panel:
1. Power: 18V 90W A grade high efficiency monocrystalline silicon
2. Lifetime: 25 years
Battery:
1. Type: 48AH powerful LiFePO4 battery
2. Lifetime: 5 years
LED lamp(with motion sensor)
1. LED chips: Philips/Bridgelux with high brightness
2. Lumen: 7200-8400lm
3. Lifetime: ≥50,000 hours
4. Viewing Angle: 90°*160°
Charging Time:6-8 hours in strong sunshine
Working Time: 3-5 continuous cloudy and rainy days
Working Temperature: -30℃~60℃
Colour temperature: 6000-6500K (standard),2800-3300k, 4000-5000k,etc
Mounting Height: 7-8m
Model NO. | CSQY2-20W | CSQY2-30W | CSQY2-40W | CSQY2-50W | CSQY2-60W | CSQY2-80W | CSQY2- 100W |
Lamp Power | 20W | 30W | 40W | 50W | 60W | 80W | 100W |
Led Chips | Bridgelux/Nichia/or other brands | ||||||
Lumen | 2400- 2800lm | 3600- 4200lm | 4800- 5600lm | 6000- 7000lm | 7200- 8400lm | 9600- 11200lm | 12000- 14000lm |
Solar Panel Power | 18V 40W | 18V 70W | 18V 70W | 18V 90W | 18V 90W | 18V 120W | 18V 120W |
Solar Panel Type | High Efficiency Monocrystalline Silicon | ||||||
Solar Panel Lifetime | 25 Years | ||||||
Battery Type | Powerful LiFePO4 Battery with 5 Years Lifetime | ||||||
Installing Height | 5-6m | 6-7m | 6-7m | 7-8m | 7-8m | 8-10m | 8-10m |
Installing Distance | 15-18m | 18-20m | 18-20m | 20-25m | 20-25m | 25-30m | 25-30m |
Warranty Years | 3-5 Years | ||||||
